AR15 / M16 QD System: Locking Lever configurations options

AR15 / M16 (Quick Disconnect) Configurations and "The Extreme Optical Machine"

Tactical advantages of this design are endless with accuracy second to none!

All units are preassembled at our factory in the TYPE 1 Configuration (Battle Pack)
unless otherwise ordered differently, and all optional configurations
can be installed instantly and/or "In The Field".

TYPE 1 Configuration is the preferred setup !

Configuration changes can be made very fast, using the very same parts and tools
that are included with the system as shipped. (All Battle Packs are shipped,
assembled, tested, and certified inspected - unless otherwise requested by customer.)

The following accuracy data are based on tested results and is exact and guaranteed.

Type 1 Configuration (Comes exactly this way in Battle Pack):

Color on all images has been adjusted photographically to highlight various areas of the system.
Finish is military non-reflective matte black / gray on all surfaces.
Optics have a special coating to eliminate glare.
(See Stop action video - previous page - for best color)

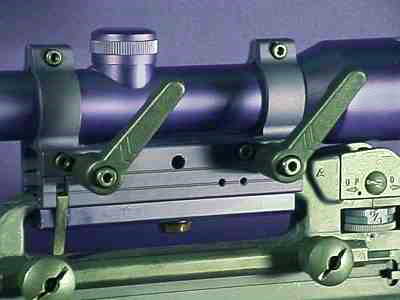

Type 1 configuration - AR15 / M16 Quick Disconnect

Type 1 Configuration (Battle Pack) - with Locking Levers which are used
for secondary locking capability and is the standard tactical configuration.

Additional tapped holes shown are used for mounting optional accessory items.

Degree of shooting accuracy tested in this configuration is less than 1/2 MOA @ 100 Yards / Meters

( Shots through the same hole are very common and easy to accomplish )

Reintegration accuracy is less than 1/8 MOA @ 100 Yards / Meters
Time required to install comfortably: 10 seconds
Time required to remove comfortably: 10 seconds
( Fastest time clocked at the company: 5 seconds on - 5 seconds off )

Type 2 Configuration: (Optional configuration but included in Battle Pack)

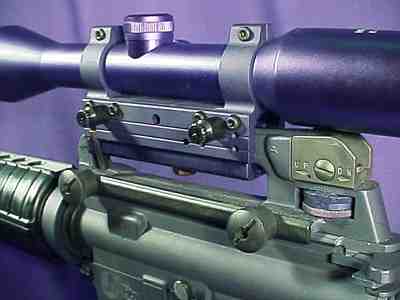

Type 2 configuration - AR15 / M16 Quick Disconnect

Type 2 Configuration - Locking Levers Removed

"Key System" - tamper proof (Unit locked on until you use your pocketed lever to remove)
Degree of shooting accuracy tested in this configuration is less than 1/2 MOA @ 100 Yards / Meters

( Shots through the same hole are very common and easy to accomplish )

Reintegration accuracy is less than 1/8 MOA @ 100 Yards / Meters
Time required to install comfortably: 10 seconds
Time required to remove comfortably: 8 seconds
( Fastest time clocked at the company: 6 seconds on - 7 seconds off )

Type 3 Configuration: (Optional configuration but included in Battle Pack)

Color has been adjusted photographically to highlight various areas of the system.
Finish is military non-reflective matte black on all surfaces.
Optics have a special coating to eliminate glare.
(See Stop action video - previous page - for best color)

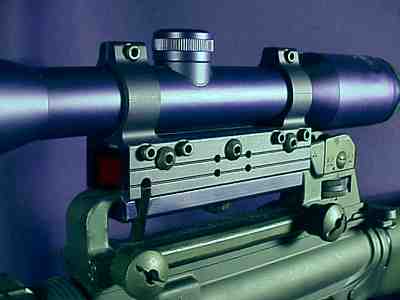

Type 3 configuration - AR15 / M16 Quick Disconnect

Type 3 Configuration - No Locking Levers

Additional tapped holes seen here are used for
mounting optional accessory items.

Used for fastest tactical removal with a minor loss in MOA
Degree of shooting accuracy tested in this configuration is less than 1 MOA @ 100 Yards / Meters

( Shots through the same hole are common )

Reintegration accuracy is less than 1/4 MOA @ 100 Yards / Meters
Time required to install comfortably: 4 seconds
Time required to remove comfortably: 3 seconds
( Fastest time clocked at the company: 3 seconds on - 2 seconds off )

All shipped Battle Packs:

TYPE 1 Configuration is the preferred setup !

The following accuracy data are based on tested results and is exact and guaranteed.
